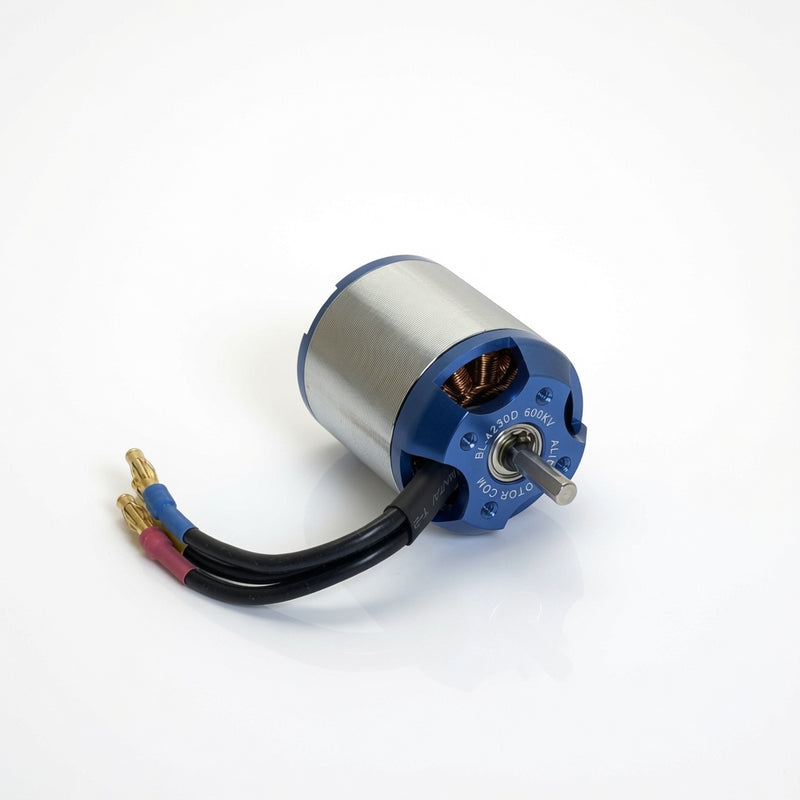

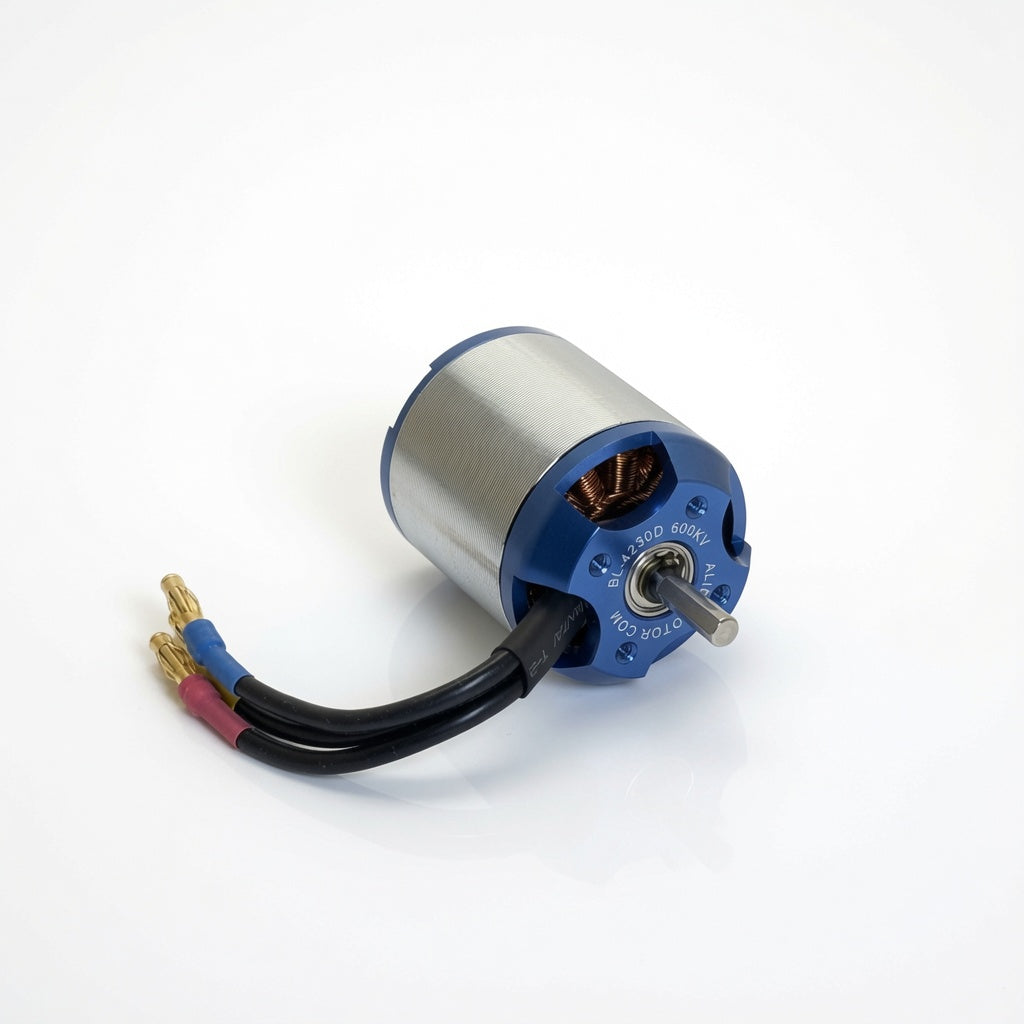

BL-4230D 3530 Brushless Motor (600KV) – High-Torque Powerhouse for 550-650mm Drones
This longer-stator motor is designed for serious lifting power in larger drone frames. Measuring 42.5mm in diameter with a substantial 56mm length, the BL-4230D (3530 series) delivers impressive torque in a sleek blue and silver anodized package that looks professional on any build.
Key Specifications:
Model: 3530 (BL-4230D)
KV Rating: 600KV – Tuned for maximum torque and efficiency

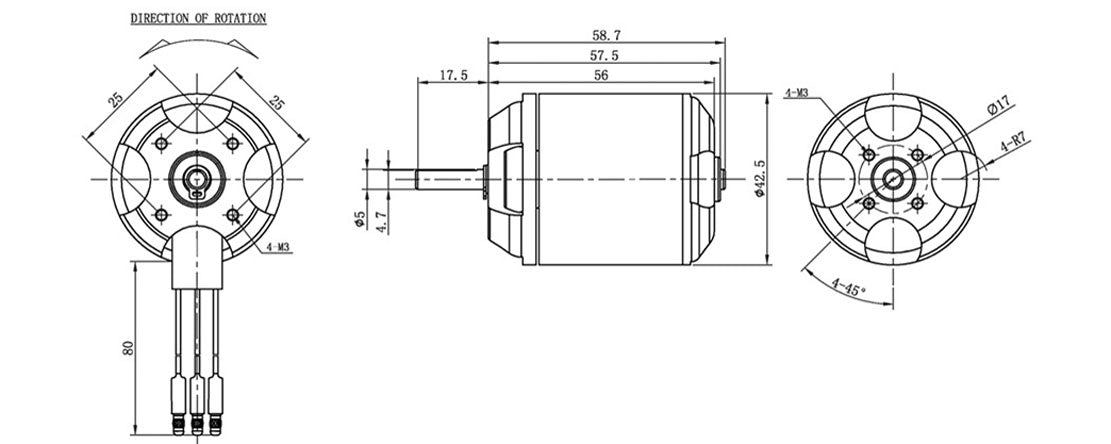

Motor Dimensions: 42.5mm diameter × 56mm length
Shaft Diameter: 5mm – Strong and compatible with larger prop adapters
Recommended Propellers: 13-15 inch
Voltage Range: 4S – 6S LiPo
Drone Frame Compatibility: 550mm to 650mm frames
Why This Motor is a Great Choice for Drones
The BL-4230D 600KV is an excellent choice for heavy-lift and large-frame drones in the 550-650mm class. Its low KV rating combined with the longer stator provides exceptional torque, allowing confident use of 13-15 inch propellers even with heavy payloads like professional cameras, gimbals, or extended-range equipment.
Superior Torque & Lift: Handles heavy loads smoothly while maintaining stable flight characteristics.
High Efficiency: Optimized for 4S-6S setups, delivering longer flight times with lower current draw compared to higher KV motors.
Built Tough: Robust construction and quality bearings ensure reliability during demanding missions and occasional rough landings.
Low Vibration: Smooth operation helps capture steady cinematic footage and reduces stress on the airframe.
Ideal for professional aerial photography/cinematography rigs, heavy-lift platforms, long-range explorers, and any 550-650mm drone that needs serious pulling power.
Ready to power up your large-frame drone? The BL-4230D brings the muscle and efficiency needed for bigger props and bigger jobs while staying cool and reliable in the air.
Models 3530(BL-4230D) KV 600 Motor diameter (mm) 42.5 Motor length (mm) 56 Drone frame sizes (mm) 550 - 650 Propeller size (inch) 13-15 Voltage 4S–6S LiPo Shaft diameter 5mm
